The only easy to assemble stand on the market. The temporary switchboards can be assembled in less than 1 minute and no access is required inside the board to do so. It makes it easier to store and transport between sites.
Temporary Site Power Boards available in Single and Three Phase Power. For construction sites tested and certified and AS/NZ61439.4 standards. Available for Fast Delivery.
Our temporary power boards are used by major project partners across a wide range of sites. Known for their build quality and reliability, our temporary switchboards are a common sight on projects nationwide.
We offer Australia-wide distribution and service, supplying temporary power solutions that meet all required safety standards and are built for long-term use. You can review our projects and product features to determine whether our solution is the right fit for your next project. Alongside the product, we provide consistent, reliable customer support.
And don’t forget when you buy switchboards from us you’ll be guaranteed a top-quality product that meets all the required safety standards. Also, you’ll be getting the benefit of our famous customer service too.
We also stock a range of CT Metering Boards, Group Metering Panels (GMPs), and Custom Switchboards suitable for your next project.
Key Features
| Enclosure | AS/NZ3012 Galvanised Powdercoated Steel X-15,Orange, IP44, Pad Lockable |
| Main Switch | 100A 3P Isolator, Wired from Single Pole on Load Side |
| MCB | 32A 3P, 6kA |
| RCD | 40A 4P, 6kA |
| Power RCBOs | 3 x 20A 1P, 6kA, Double Pole |
| GPOs | 5 x Double Gang,10A Outlet |
| GPOs | 1 x Single Gang,15A Outlet |
| Blank Plates | 2 x Blank Plates for Future GPO Positions |
| Three Phase Outlet | 5 Pin 32A Switched Socket Outlet |
| Active Links | Red 4 Hole 165A Sealable Active Link for 25mm Mains |
| Neutral Link | Black 4 Hole 165A Sealable Neutral Link for 25mm Mains |
| Earth Bar | 100A 12 way |
| Neutral Bar | 100A 12 way |
| RCD Cover | Galvanised Powdercoated Steel, X-15 Orange, Pad / Key Lockable |
| Door Stay | Galvanised Powdercoated Steel Door Retainer |
| Compliance Stickers | AS/NZ 3012 Sticker Kit |
| Compliance | AS 3000,AS 3012, AS/NZ 61439,AS/NZ 61439.4, AS 60529, AS 60947 |
| Wall Mount or Stand Mount Option Available | |
| Customisation Available | |
Key Features
| Enclosure | AS/NZ3012 Galvanised Powdercoated Steel X-15,Orange, IP44, Pad Lockable |
| Main Switch | 100A 3P Isolator, Wired from Single Pole on Load Side |
| Power RCBOs | 3 x 20A 1P, 6kA, Double Pole |
| GPOs | 4 x Double Gang,10A Outlet |
| GPOs | 1 x Single Gang,15A Outlet |
| Blank Plates | 3 x Blank Plates for Future GPO Positions |
| Active Links | Red 4 Hole 165A Sealable Active Link for 25mm Mains |
| Neutral Link | Black 4 Hole 165A Sealable Neutral Link for 25mm Mains |
| Earth Bar | 100A 12 way |
| Neutral Bar | 100A 12 way |
| RCD Cover | Galvanised Powdercoated Steel, X-15 Orange, Pad / Key Lockable |
| Door Stay | Galvanised Powdercoated Steel Door Retainer |
| Compliance Stickers | AS/NZ 3012 Sticker Kit |
| Compliance | AS 3000,AS 3012, AS/NZ 61439,AS/NZ 61439.4, AS 60529, AS 60947 |
| Wall Mount or Stand Mount Option Available | |
| Customisation Available | |
Key Features
| Enclosure | AS/NZ3012 Galvanised Powdercoated Steel X-15,Orange, IP44, Pad Lockable |
| Main Switch | 100A 3P Isolator, Wired from Single Pole on Load Side |
| Power RCBOs | 2 x 20A 1P, 6kA, Double Pole |
| GPOs | 3 x Double Gang,10A Outlet |
| GPOs | 1 x Single Gang,15A Outlet |
| Blank Plates | 4 x Blank Plates for Future GPO Positions |
| Earth Bar | 100A 12 way |
| Neutral Bar | 100A 12 way |
| RCD Cover | Galvanised Powdercoated Steel, X-15 Orange, Pad / Key Lockable |
| Door Stay | Galvanised Powdercoated Steel Door Retainer |
| Compliance Stickers | AS/NZ 3012 Sticker Kit |
| Compliance | AS 3000,AS 3012, AS/NZ 61439,AS/NZ 61439.4, AS 60529, AS 60947 |
| Wall Mount or Stand Mount Option Available | |
| Customisation Available | |

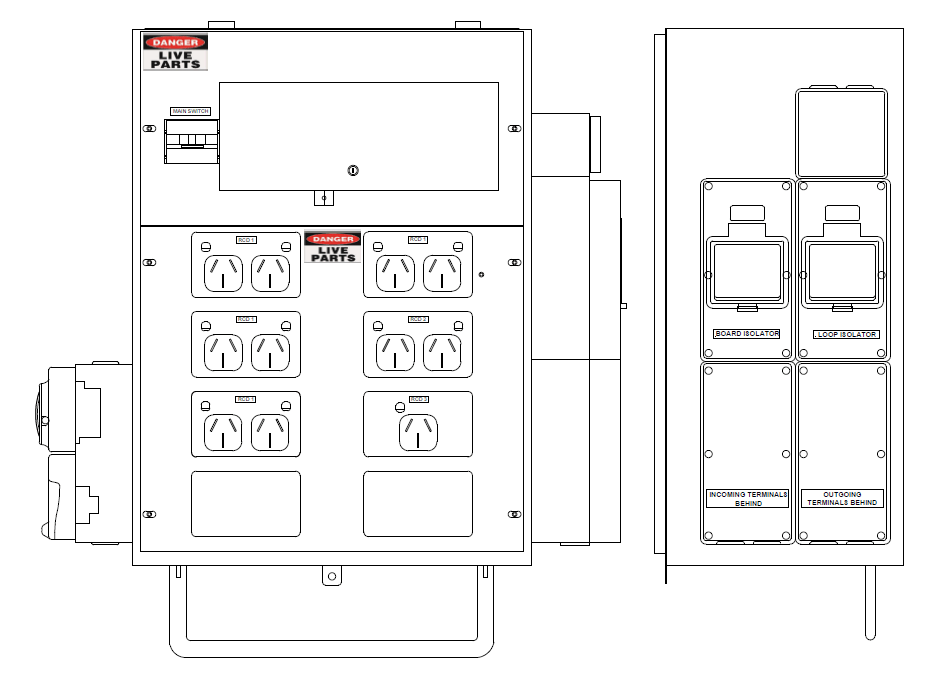

Key Features
| Enclosure | AS/NZ3012 Galvanised Powdercoated Steel X-15,Orange, IP44, Pad Lockable |
| Main Switch | 100A 3P Isolator, Wired from Single Pole on Load Side |
| MCB | 32A 3P, 6kA |
| RCD | 40A 4P, 6kA |
| Power RCBOs | 3 x 20A 1P, 6kA, Double Pole |
| Light RCBOs | 1 x 20A 1P, 6kA, Double Pole |
| GPOs | 5 x Double Gang,10A Outlet |
| GPOs | 1 x Single Gang,15A Outlet |
| Blank Plates | Blank Plates for Future GPO Positions |
| Three Phase Outlet | 5 Pin 32A Switched Socket Outlet |
| Active Links | Red 4 Hole 165A Sealable Active Link for 25mm Mains |
| Neutral Link | Black 4 Hole 165A Sealable Neutral Link for 25mm Mains |
| Earth Bar | 100A 12 way |
| Neutral Bar | 100A 12 way |
| External Loop Isolator | 100A 3P (Lockable) |
| Upstream Loop Isolator | 100A 3P (Lockable) |
| Power Terminals | Incoming and Outgoing |
| Lighting Terminals | BP Connector 6mm |
| RCD Cover | Galvanised Powdercoated Steel, X-15 Orange, Pad / Key Lockable |
| Door Stay | Galvanised Powdercoated Steel Door Retainer |
| Compliance Stickers | AS/NZ 3012 Sticker Kit |
| Compliance | AS 3000,AS 3012, AS/NZ 61439,AS/NZ 61439.4, AS 60529, AS 60947 |
| Wall Mount or Stand Mount Option Available | |
| Customisation Available | |
Key Features
| Enclosure | AS/NZ3012 Galvanised Powdercoated Steel X-15,Orange, IP44, Pad Lockable |
| Main Switch | 100A 3P Isolator |
| MCB | 32A 3P, 6kA |
| RCD | 40A 4P, 6kA |
| Power RCBOs | 4 x 20A 1P, 6kA, Double Pole |
| Light Test Point | 1 x 10A Lighting Test Point |
| GPOs | 1 x Double Gang,10A Outlet |
| GPOs | 1 x Single Gang,15A Outlet |
| Blank Plates | 2 x Blank Plates for Future GPO Positions |
| Three Phase Outlet | 5 Pin 32A Switched Socket Outlet |
| Board Isolator | 100A 3P (Lockable) |
| Loop Isolator | 100A 3P (Lockable) |
| Lighting Terminals | BP Connector 6mm |
| RCD Cover | Galvanised Powdercoated Steel, X-15 Orange, Pad / Key Lockable |
| Door Stay | Galvanised Powdercoated Steel Door Retainer |
| Compliance Stickers | AS/NZ 3012 Sticker Kit |
| Compliance | AS 3000,AS 3012, AS/NZ 61439,AS/NZ 61439.4, AS 60529, AS 60947 |
| Wall Mount or Stand Mount Option Available | |
| Customisation Available | |

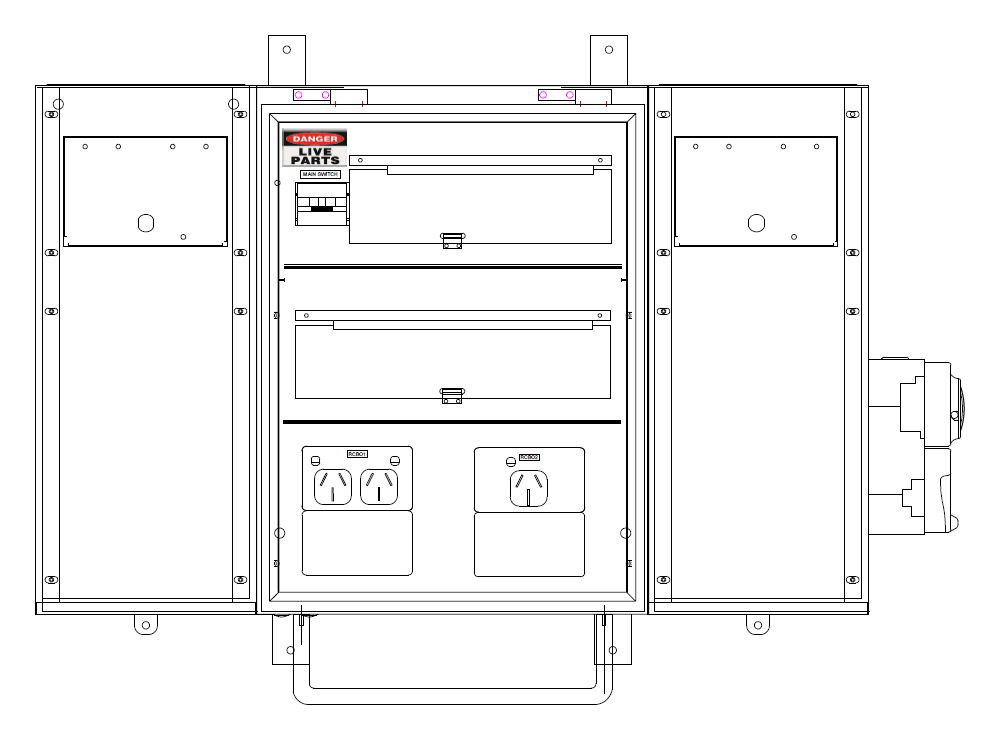

| Project Suitability: Tunnel Projects | |
Temporary site power boards or temporary electrical switchboards safely distribute power across construction sites, outdoor events, and industrial projects. They provide a central power source for tools, equipment, and lighting, ensuring a reliable and compliant power solution.
Electrical contractors must not install Type AC RCDs from 30 April 2023. We discuss a solution suitable for the D.S.D Temporary Power Boards for contractors requiring Type A replacement switchgear .
